Caja de conexión exterior de 20 pares 1B 11 para módulo LSA, 250x175x111mm, carcasa RFP, bloqueo de clip, con marco de montaje posterior, sin módulo LSA, sin candado y sin logotipo grabado

TAEPO - Especializado en cajas de conexión para módulos LSA, ¡Fabricante chino profesional de soluciones de red versátiles!
¿Qué se utiliza para una caja de conexión?


   DESCRIPCIONES

20 pairs Distribution point box / 20 pairs DP box(TP-1708-20B) is used in terminating cables of secondary telephone networks to the cable pairs of subscriber lines.

This 20 pairs box can be installed with 10 pairs LSA disconnection module ( you can visit details here ) which is highly reliable and cost-effective wire connection system for modern telecommunications and data networks. This module adopts IDC (Insulation Displacement Connection) technique, which means no soldering, wire-stripping or the use of screws, and which clamps the wires at a 45 degree angle, thus dramatically reducing the risk of a poor termination and increasing the wiring productivity. Contacts that ensure the highest degree of reliability even under the most adverse environmental and climatic conditions. A completely reliable, gas-tight connection between the contact and conductor.

    CARACTERÍSTICAS PRINCIPALES

• Insulation Displacement Connection
• No wire-stripping, screw and solder free
• Reliable connections
• Clear labeling
• Modular design and installations
• Gas tight connection
• One push wire insertion
• Robust long-term environmental stability
• Flexible indoor and outdoor use
• Wall or pole mountable
• Quick mounting and installation

    DIAGRAMAS ESQUEMÁTICOS

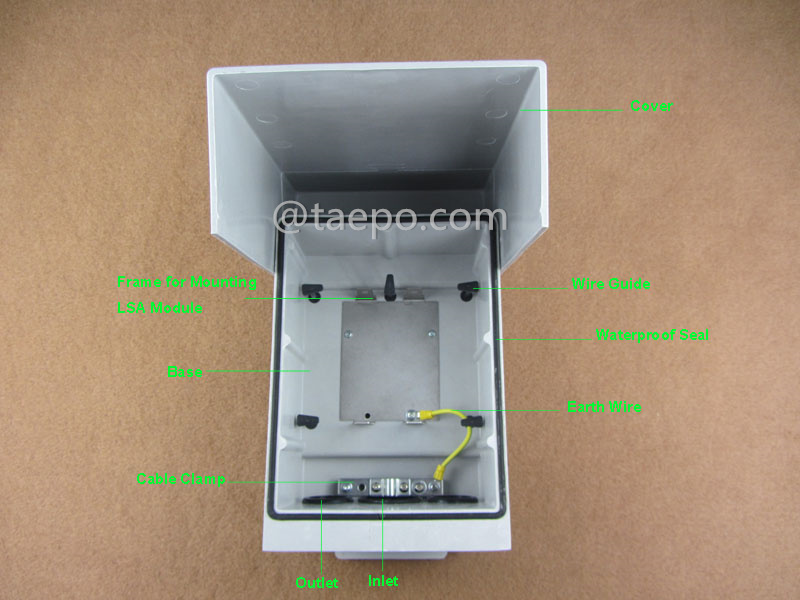

    IMÁGENES ILUSTRATIVAS


    IMÁGENES DEL EMBALAJE

    DATOS DE PEDIDO
