Herramienta de inserción para bloque de desconexión MDF 71 #TP-1401-100, rojo y gris, con trozo de plástico

TAEPO - ¡Especializado en la herramienta de inserción para el bloque de desconexión MDF 71, su socio de fabricación profesional chino!
¿Qué hace la herramienta de inserción para el bloque de desconexión MDF 71?


    DESCRIPCIONES

Insertion tool for MDF disconnection block 71 (TP-5905-C) is available for all applications where a large number of single wires must be distributed or connected. No insulation removal, no use of screws, no soldering, extremely fast working on-site with integrated contact safety.

The Tool with sensor is seen by experts to be the key to unparalleled contact security, and fast and clean work. The sensor detects whether the wire has been pressed far enough into the contact. The cutting mechanism, which trims the excess wire ends, is not activated until the sensor detects that the contact is correct.

The Insertion Tool permits the gas-tight connection and trimming of the wire in just one single action. No stripping of wires or use of screws is required - a simple pressing of the tool is sufficient. A correctly terminated contact is indicated by an audible click.

The hole of the tool can be attached to the mounting aid. A handy hook for hanging up the tool when it is not immediately being used.

    CARACTERÍSTICAS PRINCIPALES

• Insulation Displacement Connection (IDC)
• Easy operation
• Long life use
• No Wire-stripping, screw and solder free
• Reliable connections
• Gas tight connection
• One push wire insertion
• Robust long-term environmental stability

    DIAGRAMAS ESQUEMÁTICOS

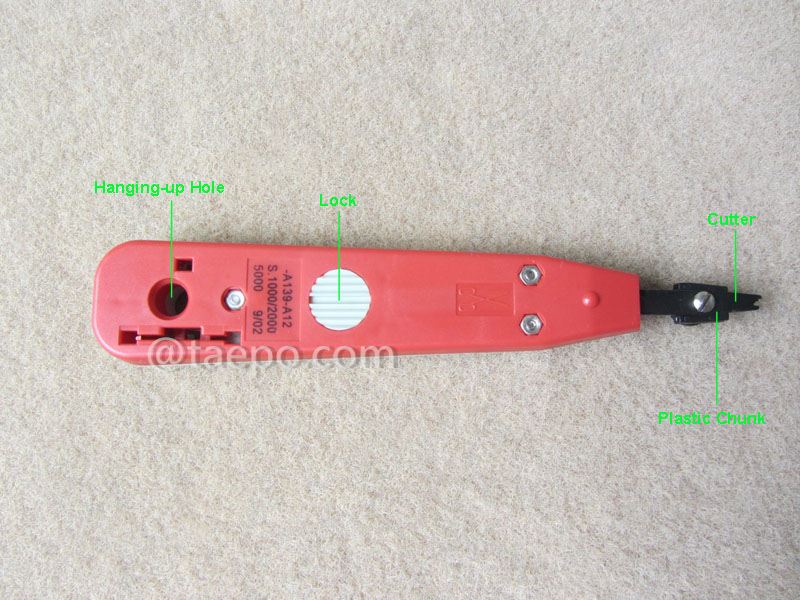

    IMÁGENES ILUSTRATIVAS

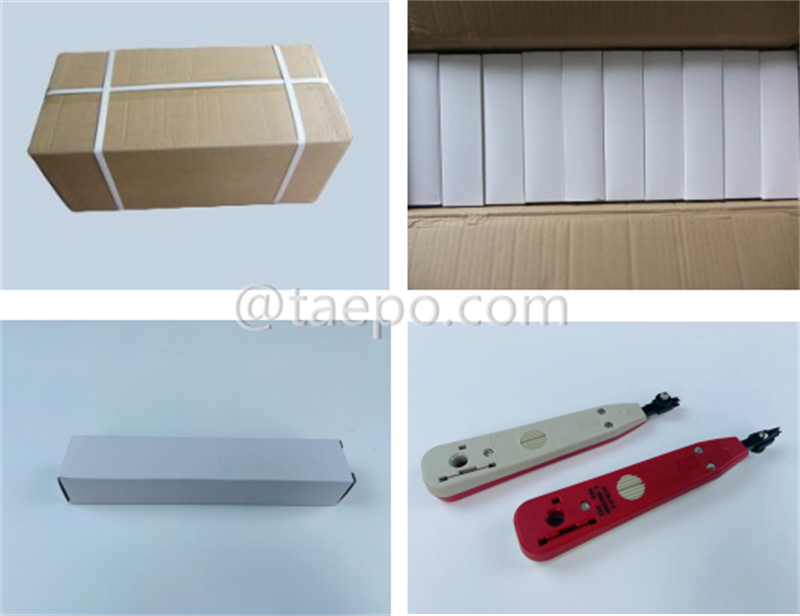

    IMÁGENES DEL EMBALAJE

   DATOS DE PEDIDO
