Armadura de distribución intermedia (IDF) interior para 1400 pares, para módulo LSA, tipo de marco universal, 1840(H) x 570(W) x 150(D)mm, con marco de montaje posterior 1400P, anillos de cable, sin módulos LSA

TAEPO - ¡Especializado en el marco de distribución intermedia (IDF) para 1400 pares, para módulo LSA, su socio de fabricación profesional chino!
¿Qué hace el marco de distribución intermedia (IDF) para el módulo LSA?


    DESCRIPCIONES

What is an intermediate distribution frame (IDF)?

Intermediate Distribution Frame / IDF (TP-1810-1400) is a distribution frame in a central office or customer premises, which cross-connects the user cable media to individual user line circuits and may serve as a distribution point for multipair cables from the main distribution frame (MDF) or combined distribution frame (CDF) to individual cables connected to equipment in areas remote from these frames.

IDFs are used for telephone exchange central office, customer-premises equipment, wide area network (WAN), and local area network (LAN) environments, among others.

TAEPO's TP-1810-1400 IDF is either wall mounted or back-to-back for free standing applications, and it is for LSA applications ( You can visit our LSA module here ), which adopts IDC (Insulation Displacement Connection) technique, which means no soldering, wire-stripping or the use of screws, and which clamps the wires at a 45 degree angle, thus dramatically reducing the risk of a poor termination and increasing the wiring productivity. Contacts that ensure the highest degree of reliability even under the most adverse environmental and climatic conditions. A completely reliable, gas-tight connection between the contact and conductor.

    CARACTERÍSTICAS PRINCIPALES

• Insulation Displacement Connection
• No Wire-stripping, screw and solder free
• Reliable connections
• Pre-installed cable clamps and guides for management
• Modular design and installations
• Gas tight connection
• One push wire insertion
• Robust long-term great strength.
• Powder coated, anti corrosion and beautiful appearance.

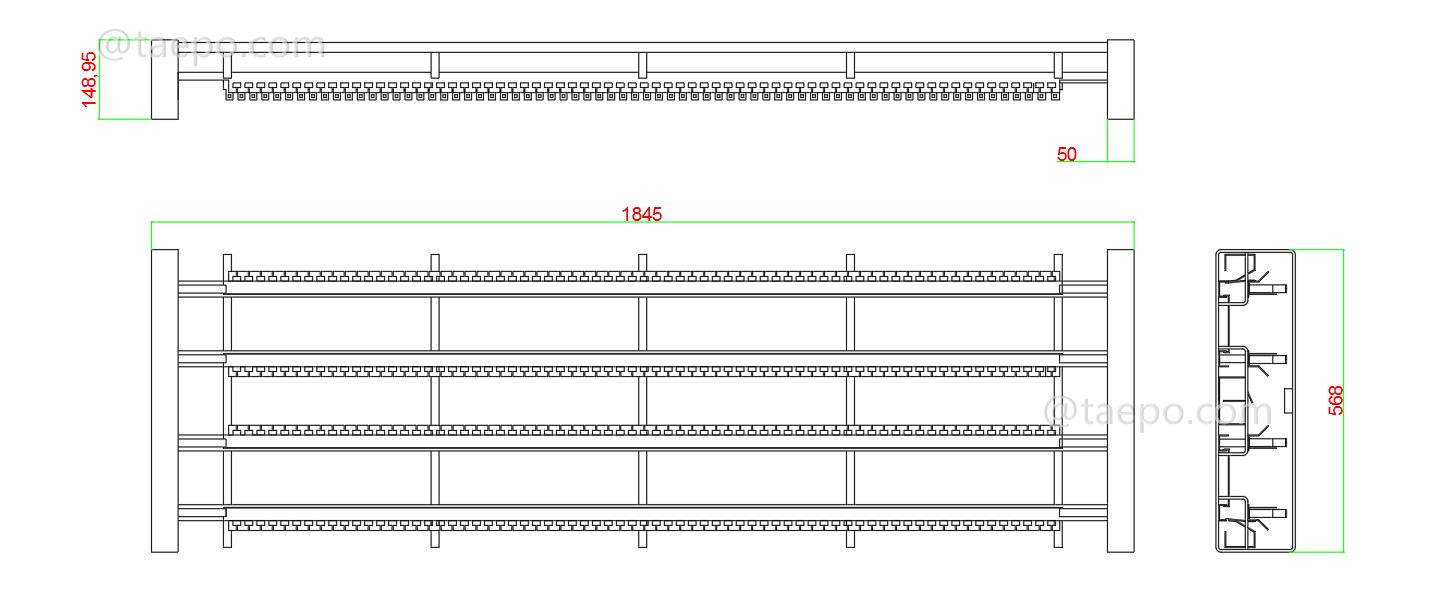

    DIAGRAMAS ESQUEMÁTICOS

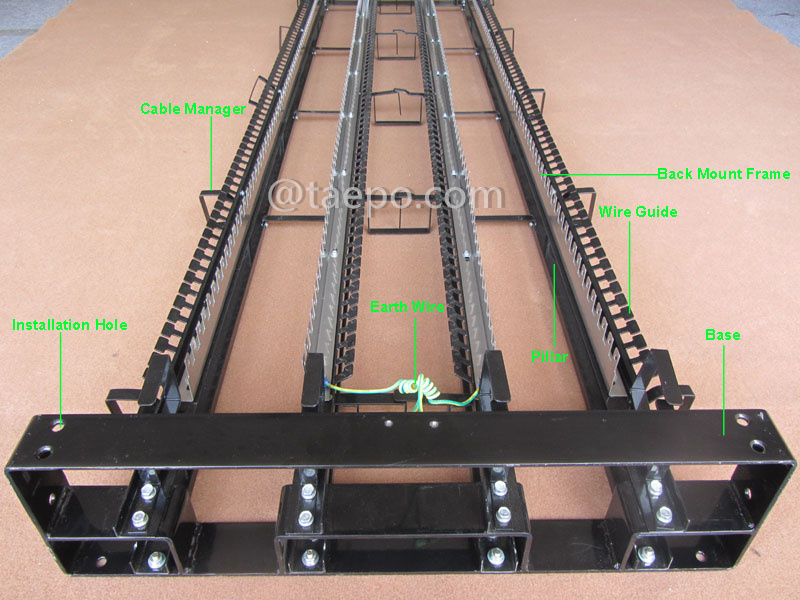

    IMÁGENES ILUSTRATIVAS

    IMÁGENES DEL EMBALAJE

    DATOS DE PEDIDO
